Standard Structural Kit
Standard Structural Kit Specifications |
|
FLOOR |
|
| Floor Joists | 45 x 145 @ 600 cts & cross cut to length |
| Wall Plate | 45 x 145 random lengths |
| Header Joists, Packers | 45 x 145 and cross cut to lengths, 45 x 70mm packers, |
| Plywood Plates & Glue to Chipboard Flooring | 300 x 140 sterling board plate |
| Flooring Dwangs | 45 x 145 & 45 x 70 cross cut to length |
| Flooring T & G Chipboard | 22mm moisture resistant 2400 x 600 sheets |
WALLS |
|
| Structural External Panels | 45 x 145 whitewood dressed Framing at 600mm centres 145 x 220 lintels to openings with 9.5mm sterling board cladding Factory fitted breather paper |
| Load Bearing Partitions | 45 x 95 whitewood dressed Framing at 600mm centres 95 x 220 lintels to opening With one row of dwangs |
| Sill Plate | 20 x 145 random lengths |
| Head Binders | 45 x 145 random lengths |
| Checked Head Binders | 54 x 145 random lengths |
| Fire Stop/Cavity Closers | 38 x 50 random lengths |
| Dwang Material for Plumbing & Electrical | 22 x 100 random lengths |

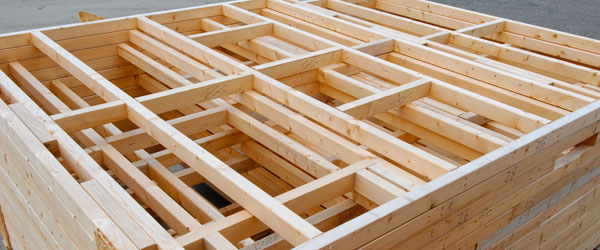

| Internal Partition Panels | 45 x 70 framing at 600mm centres with one row of dwangs all fully prefabricated |
| Vent Pipe Framing | 38 x 50 framing random lengths |
ROOF |
|
| Gangnail Roof Trusses at 600mm centres inc. gable ladders | |
| Valley Trusses | Prefabricated |
| Valley Boards | 15 x 150 random lengths |
| Gable Panels | 45 x 95/145 whitewood dressed framing at 600mm centres with 9.5mm sterling board factory fitted breather paper |
| Roof Truss Bracing | 22 x 100 random lengths |
| Sarking | 9mm sterling board 2400 x 1200 sheets |
| Roof Membrane | A1 protect membrane |
| Fascia Boards | 20 x 195 redwood random lengths |
| Soffit | 9mm plywood pre cut to width |
| Plasterboard Ceiling Dwangs | 38 x 50 cross cut to lengths |
| Gable Plasterboard Fillet | 38 x 50 random lengths |
| Counter Battens | 10 x 38 random lengths |
| Tiling Battens | 22 50 random lengths |
